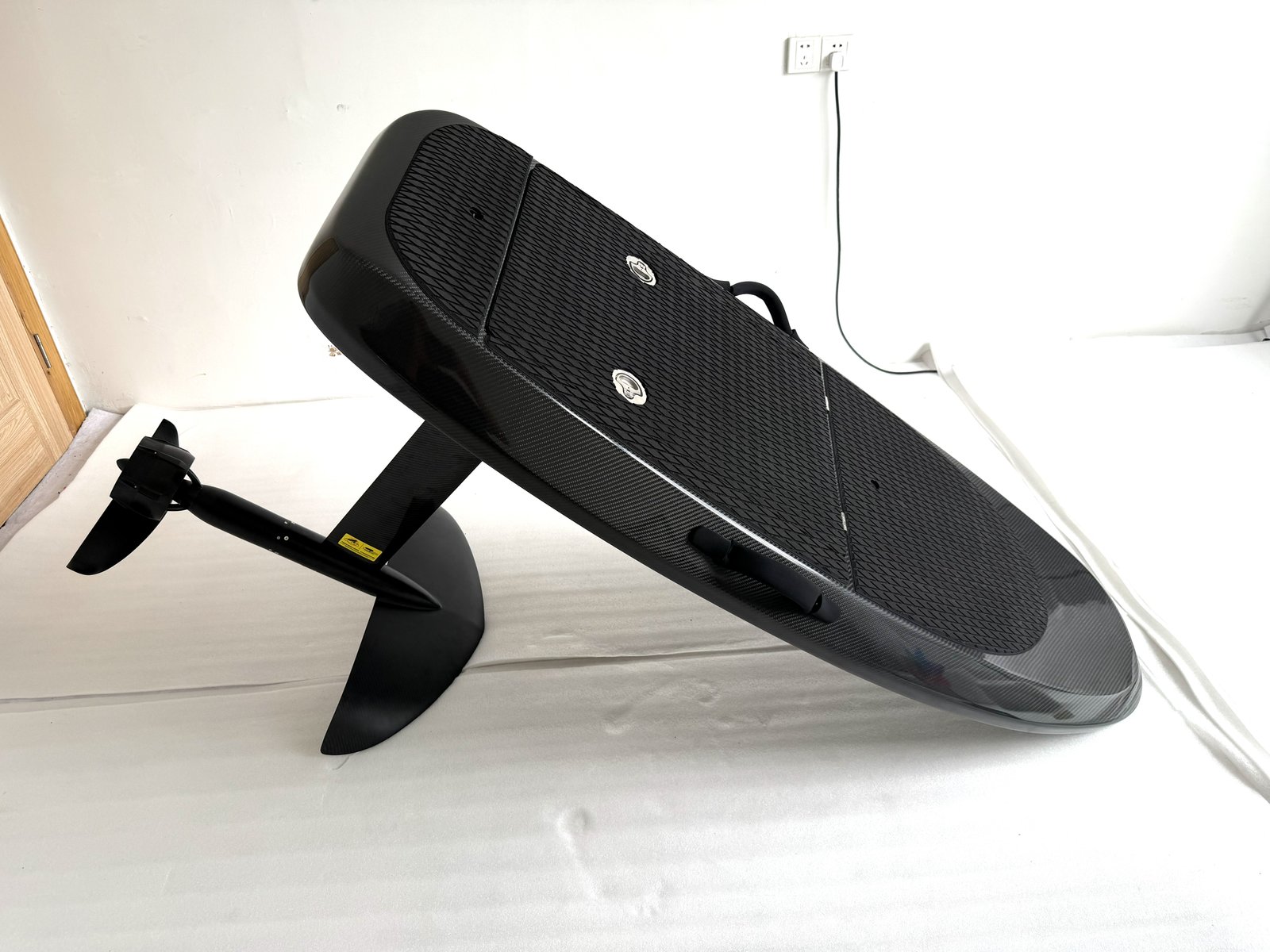

Carbon Fiber eFoil for OEM & Custom Branding
The Xsea-Tech Carbon Fiber eFoil is a lightweight and high-performance electric hydrofoil designed for water sports brands, distributors, rental businesses, and OEM/ODM customers.
Featuring a carbon fiber reinforced construction, aluminum alloy internal frame, high-performance electric propulsion system, and removable lithium battery, this eFoil is designed to provide a responsive, stable, and enjoyable riding experience.
With a maximum speed of 45 km/h (28 mph) and an estimated riding time of 1–1.5 hours, it is suitable for recreational riding, water sports businesses, rental operations, and private users.
Xsea-Tech provides OEM and ODM manufacturing services, allowing customers to customize branding, colors, graphics, EVA deck pads, packaging, and selected technical components.
Carbon Fiber Board Construction
The board combines lightweight materials with an internal structural frame to achieve a balance between weight, strength, and durability.
Board Construction
- Board Material: Carbon Fiber
- Internal Structure: Flame-Retardant EPP Foam + Aluminum Alloy Frame
- Composite Reinforcement: 2 Layers of Fiberglass + 2 Layers of Carbon Fiber
- Board Weight: 12.5 kg
- Board Size: 168 × 71.8 × 12.5 cm
- Maximum Load: 100 kg
The internal aluminum alloy frame provides structural support, while the EPP foam core and composite reinforcement help improve rigidity and impact resistance.
High-Performance Electric Propulsion
The Carbon Fiber eFoil is equipped with a water-cooled, brushless waterproof motor and a high-performance electric drive system.
The system provides up to 8,000 W input power and approximately 6,000 W shaft output, delivering smooth and responsive acceleration for hydrofoil riding.
Efoil Drive System
- Input Power: 8,000 W
- Shaft Output: 6,000 W
- Nominal Voltage: 52 V
- Maximum Current: 120 A
- Motor Type: Brushless Waterproof Motor
- Motor Power: 8 kW
- Motor Speed: 7,000 RPM
- Protection Rating: IP68
- Cooling: Water Cooling
- Propeller Diameter: 150 mm
- Propeller Protection Diameter: 168 mm
The IP68-rated motor and water-cooling system are designed for demanding water sports applications and help maintain reliable performance during extended riding.

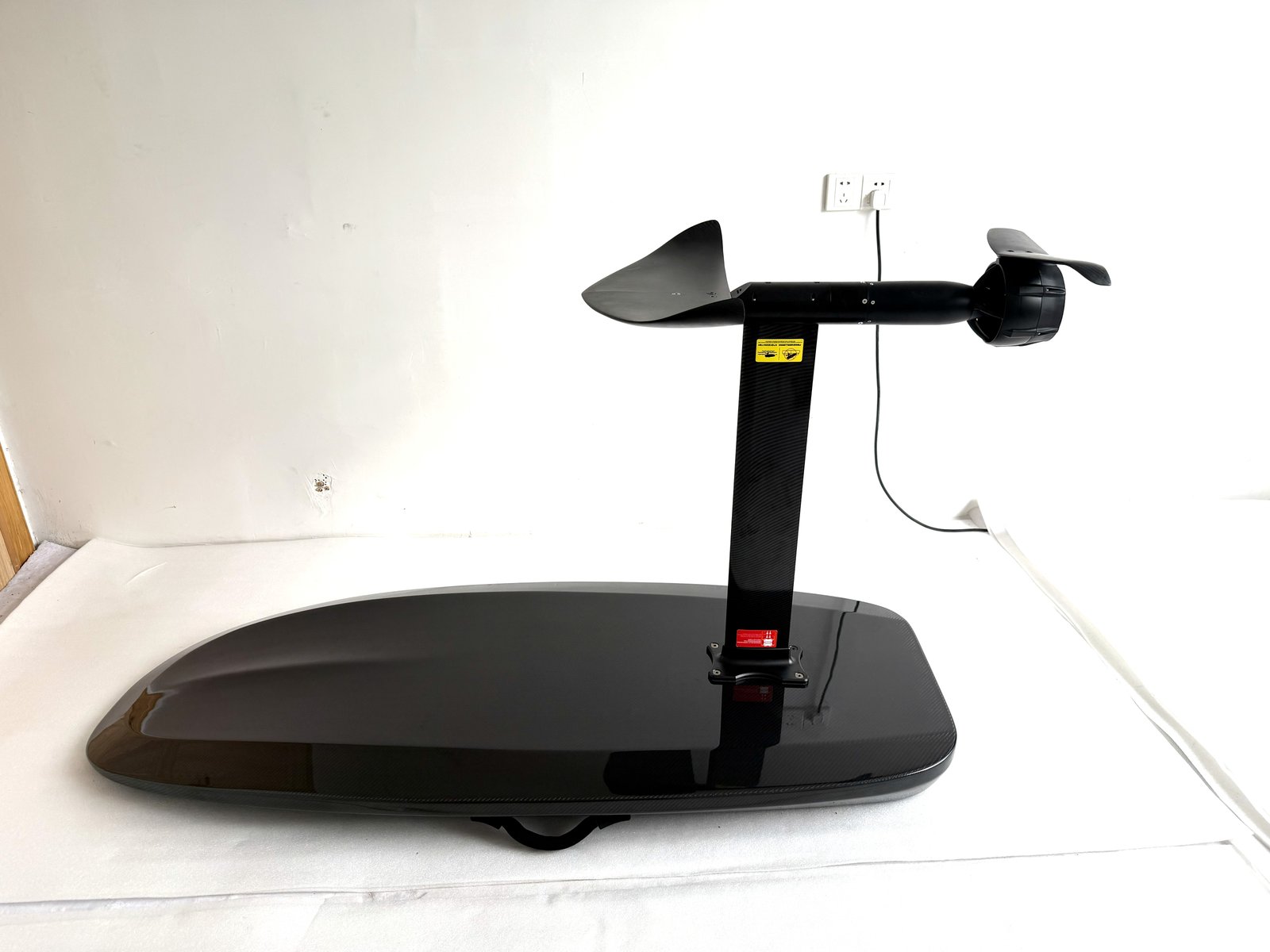

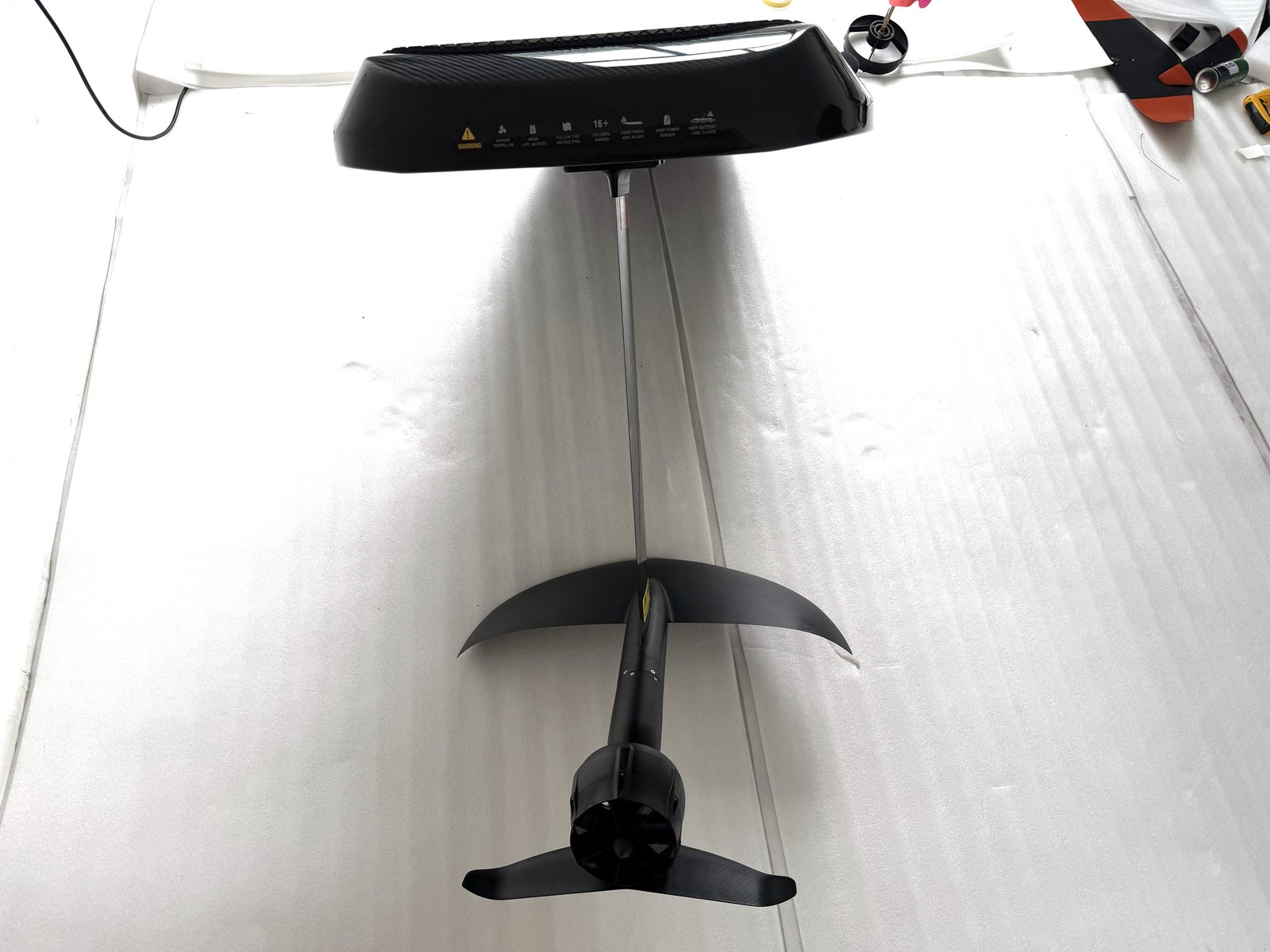

Hydrofoil System
The hydrofoil system is designed to provide stable lift and responsive handling once the board reaches take-off speed.
Front Wing
69.5 × 25.5 × 2.9 cm
Rear Wing
40.5 × 9.5 × 1.8 cm
Motor & Mast Assembly
55.5 × 7 cm
Mast
60–90 × 12.5 × 1.5 cm
The mast length can be configured from 60 to 90 cm, allowing different setups for riding conditions and customer requirements.
Board Mount / Pedestal
Aluminum & Carbon Fiber: 19.1 × 11.8 × 4.1 cm
Waterproof Wireless Controller
The eFoil is equipped with a wireless remote control using 2.4 GHz communication.
The controller provides convenient speed control and riding information, including:
- Main Gear
- GPS Speed Display
- Cruise Control
- Speed Control
- IP68 Protection
The waterproof controller is designed for reliable operation in water sports environments.

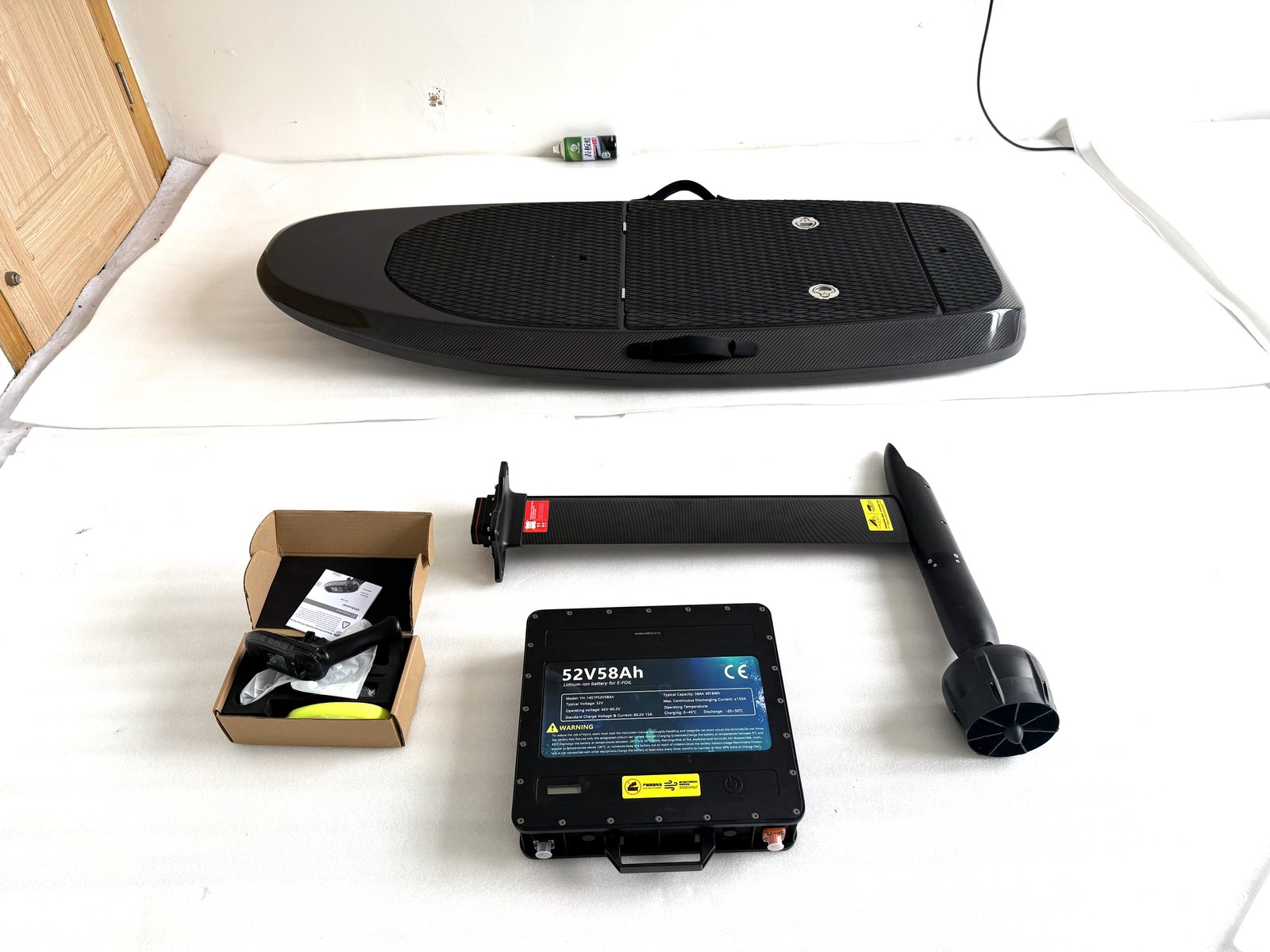

Removable High-Capacity Battery
The eFoil uses a 52 V / 58 Ah rechargeable lithium battery with a total energy capacity of approximately 3,016 Wh.
The removable battery design makes transportation, charging, and battery replacement more convenient.
Battery Specifications
- Battery Type: Ternary Lithium Battery
- Capacity: 58 Ah / 3,016 Wh
- Nominal Voltage: 52 V
- Maximum Charging Voltage: 60.2 V
- Minimum Voltage: 42 V
- Rated Continuous Discharge Current: 150 A
- Rated Charging Current: 15 A
- Cycle Life: 800 cycles at ≥80% capacity
- Battery Weight: 18 kg
- Battery Size: 368 × 340 × 86 mm
The battery system is designed to provide a balance between power output, riding time, and overall system weight.
Riding Performance
The standard configuration provides:
- Maximum Speed: 45 km/h (28 mph)
- Estimated Riding Time: 1–1.5 hours
- Motor Power: 8 kW
- Battery Energy: 3.016 kWh
- Nominal Voltage: 52 V
Actual riding time and range may vary depending on rider weight, riding style, water conditions, speed, temperature, and other operating conditions.
Charger
The standard charger is designed for convenient battery charging.
- Charging Current: 15 A
- Charging Time: Approximately 3 hours

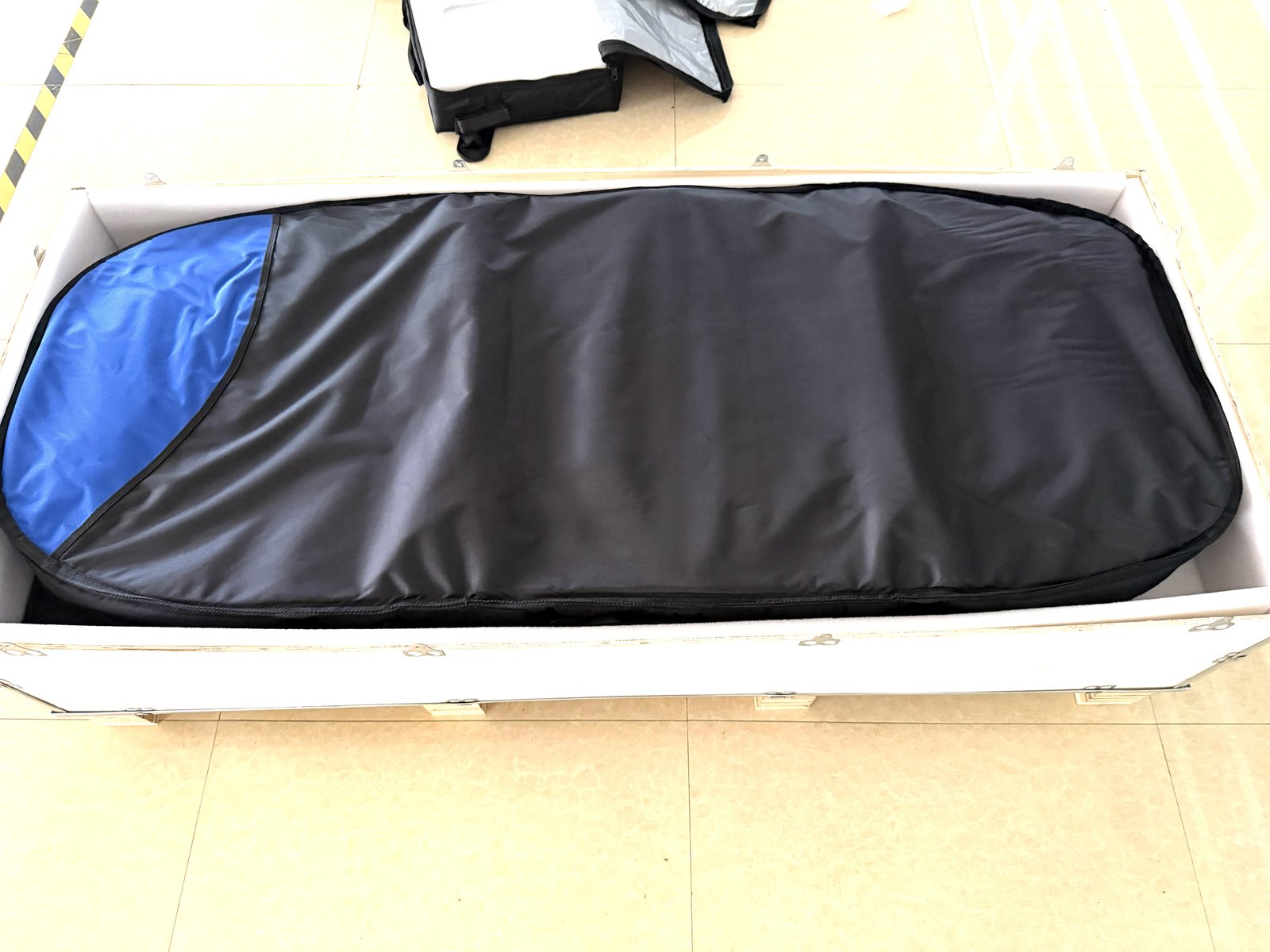

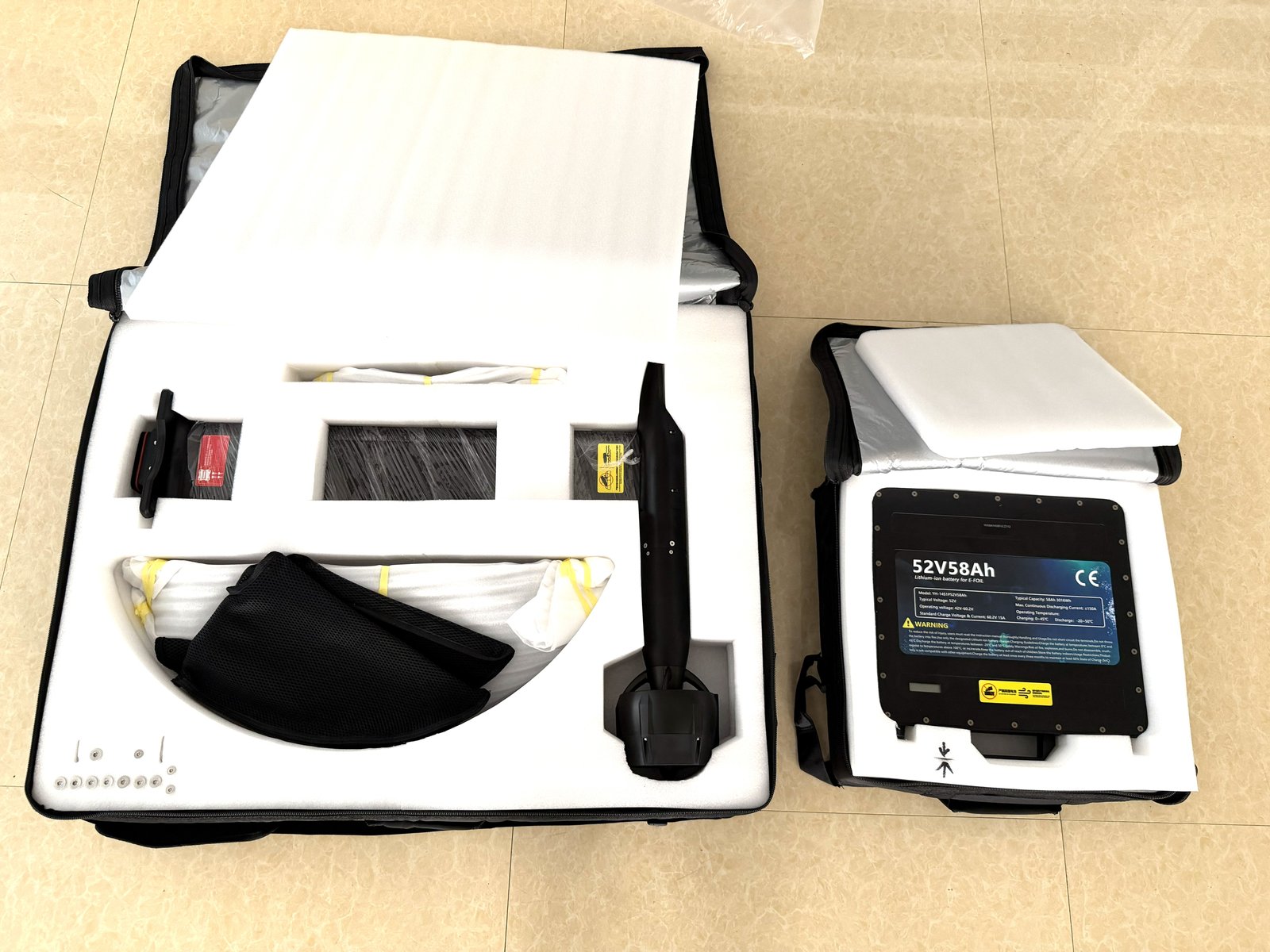

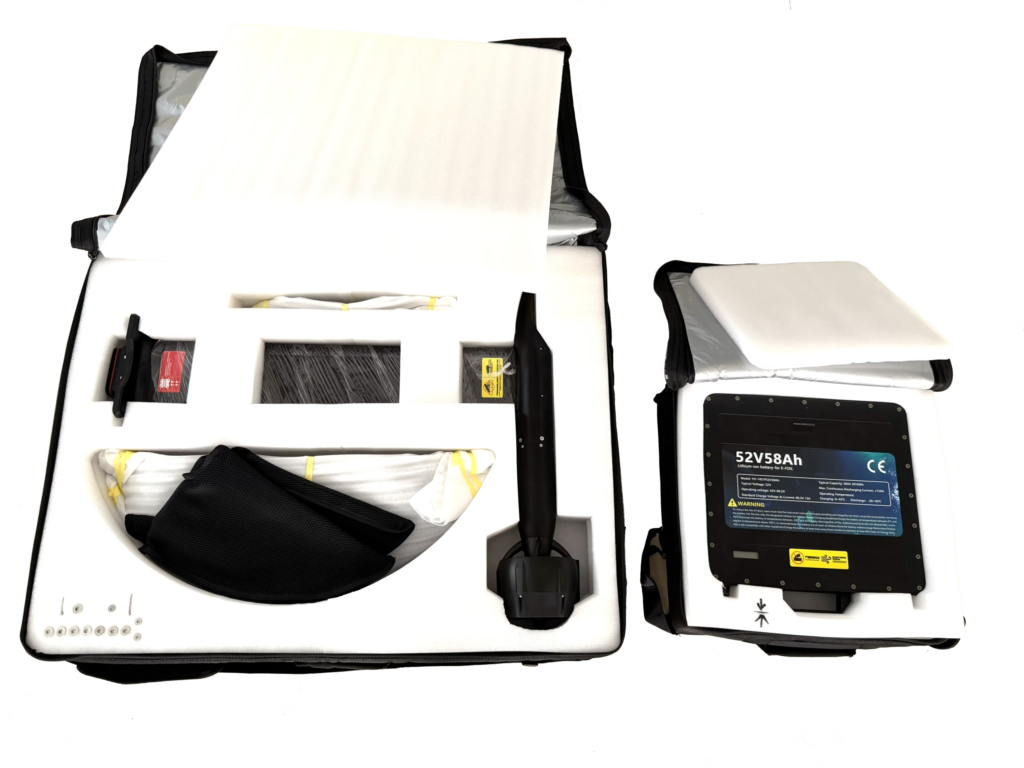

Package & Transportation
The Carbon Fiber eFoil is designed with transportation and logistics in mind.
Package Dimensions
- Overall Package: 1780 × 780 × 470 mm
- Battery Case: 450 × 450 × 150 mm
Weight
- Board: 11.5 kg
- Battery: 18 kg
- Hydrofoil: 8.5 kg
- Battery Package: 21 kg
- Carton Gross Weight: 52 kg

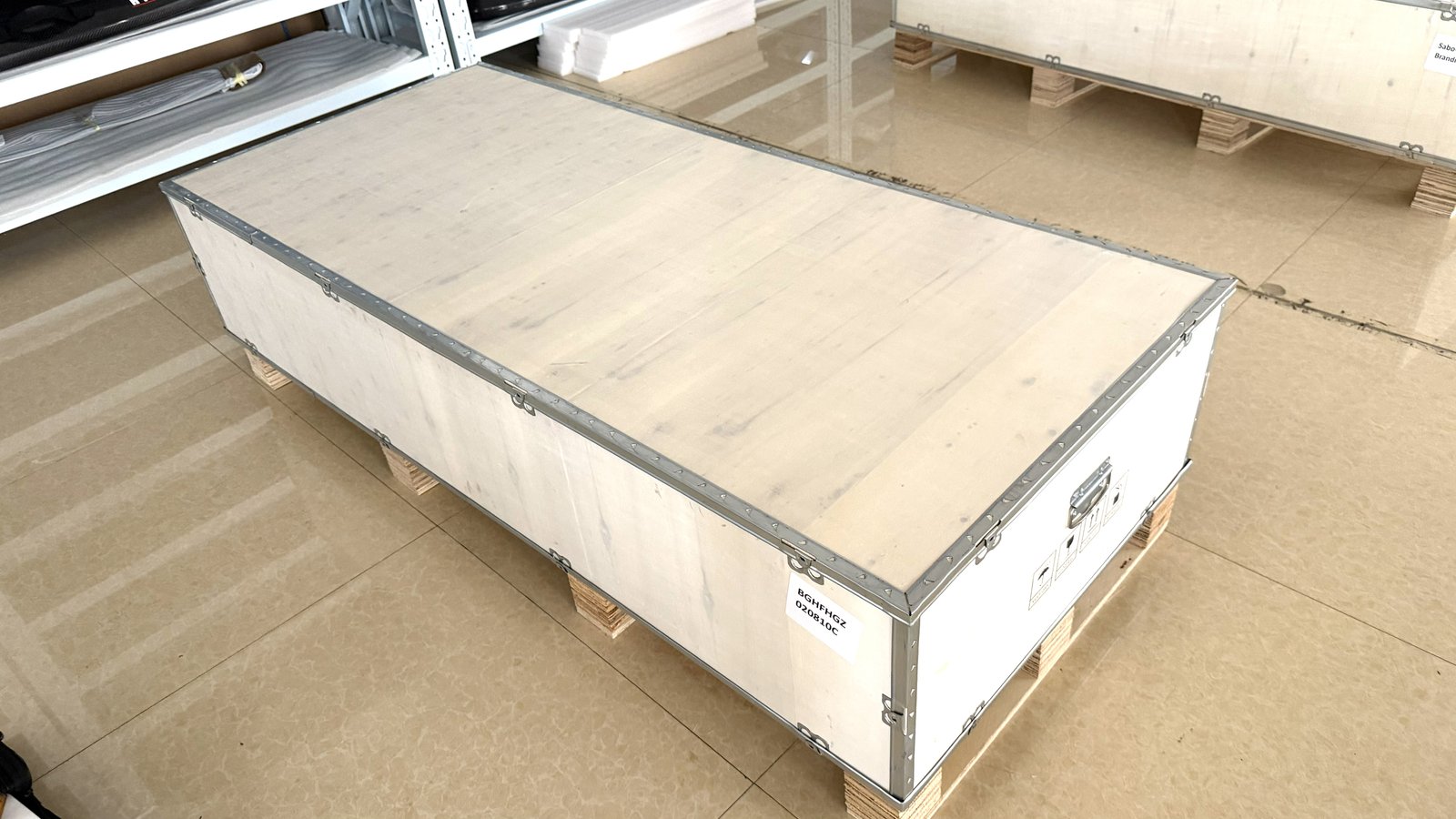

- Wooden Case Gross Weight: 83 kg
Packaging can be customized according to customer requirements, including retail packaging, export cartons, wooden cases, and branded packaging.
OEM & ODM Carbon Fiber eFoil
Xsea-Tech supports OEM/ODM projects for brands, distributors, rental companies, and water sports businesses.
Depending on the project, customization options may include:
- Custom brand and logo
- Custom board colors
- Custom graphics
- Custom EVA deck pad
- Custom remote control branding
- Custom board bag
- Custom packaging
- Battery configuration
- Motor and ESC configuration
- Speed and power settings
- Selected component customization
We can work with our existing eFoil platform or evaluate specific technical modifications according to your target market and application.
Why Choose Xsea-Tech?
- Professional Carbon Fiber eFoil manufacturer
- OEM/ODM manufacturing capability
- In-house R&D and engineering support
- Carbon fiber and composite product development
- Electric motor and battery system integration
- Prototype and small-batch production
- Custom branding and packaging
- Factory-direct supply
- Support for global B2B customers
Warranty
The standard warranty period is:
- Electronic components: 1 year
- Battery: 9 months
Warranty terms may vary depending on the final OEM configuration and commercial agreement.
Build Your Own Carbon Fiber eFoil Brand
Whether you are developing a new water sports brand, expanding an existing product line, or looking for a reliable eFoil supplier, Xsea-Tech can provide a complete OEM/ODM solution from product customization and prototype development to production and delivery.
Contact Xsea-Tech to discuss your Carbon Fiber eFoil project, request detailed specifications, or arrange a sample for testing.
